Metropoulos Amplification Images

Folders

  • Amp Archives
    • Metropoulos Amplification
      • Techical Reference CD
        • 1987
          • Images 11

      Images

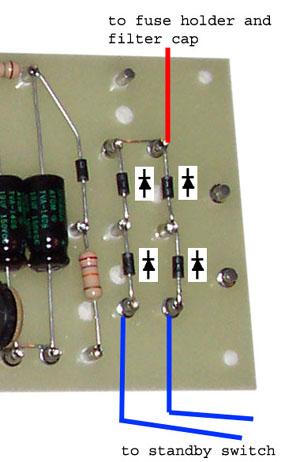

      50 watt diode diagram

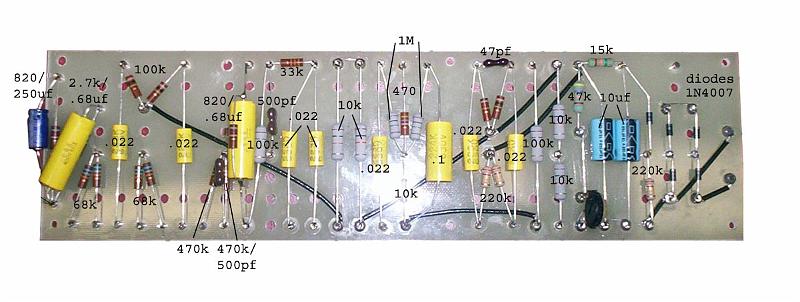

      50w board w values

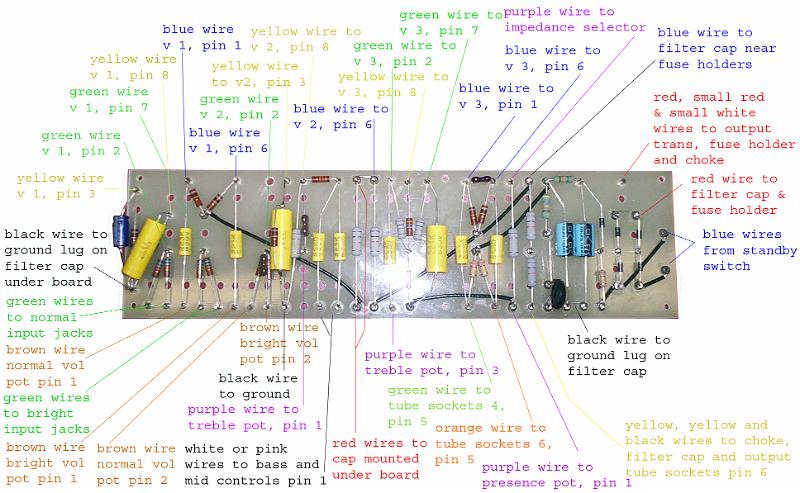

      50w install pic w notes copy
      50W RI w notes copy

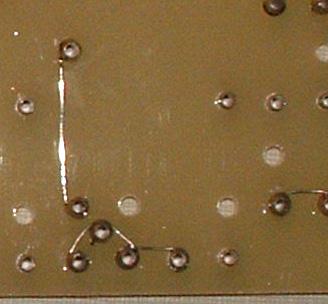

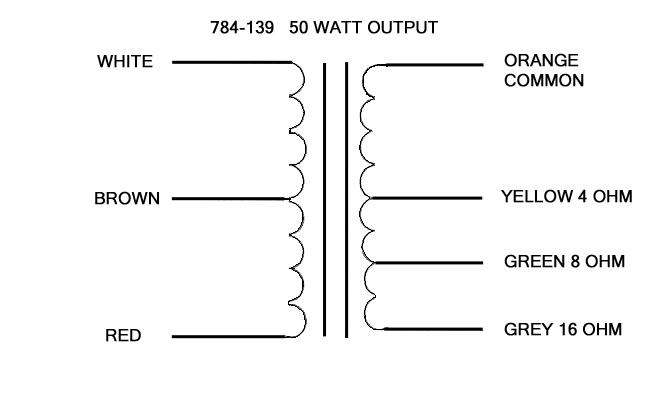

      784-139
      1202-118

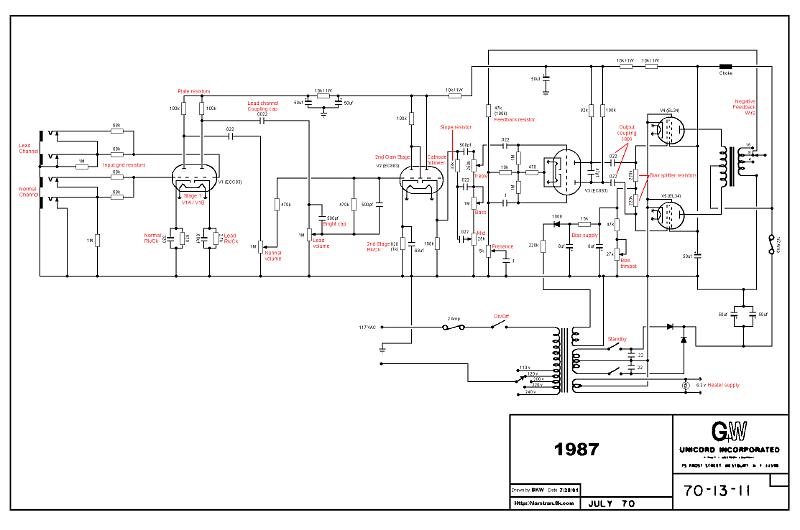

      1987_NOTATED
      bias pot buss wiring

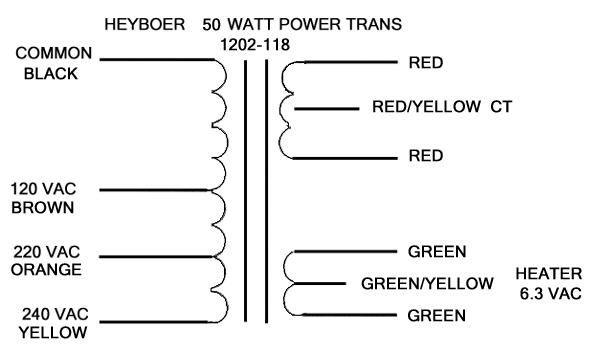

      Heyboer 50 W PT copy

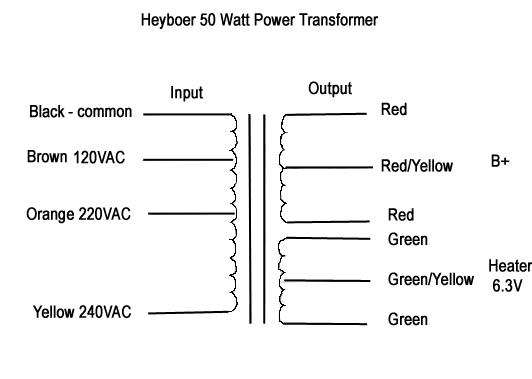

      Heyboer 50 W PT

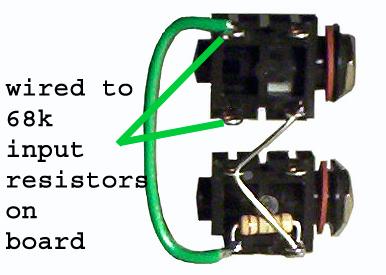

      input jack wiring
